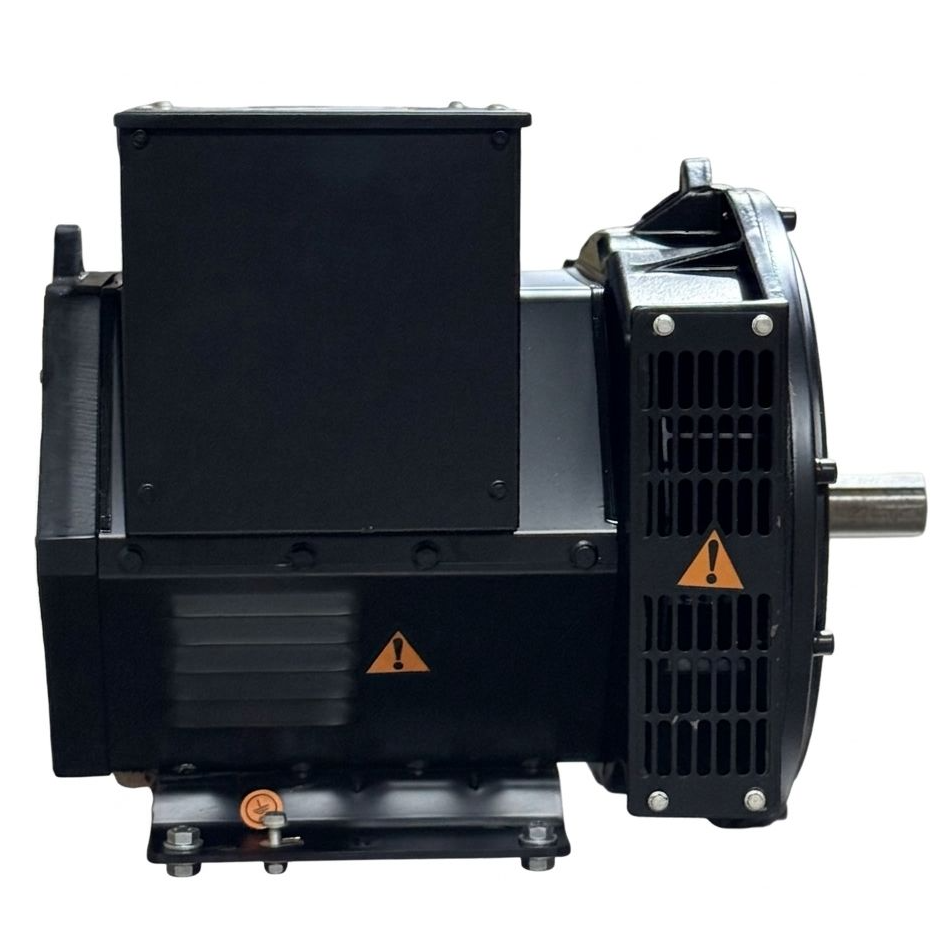

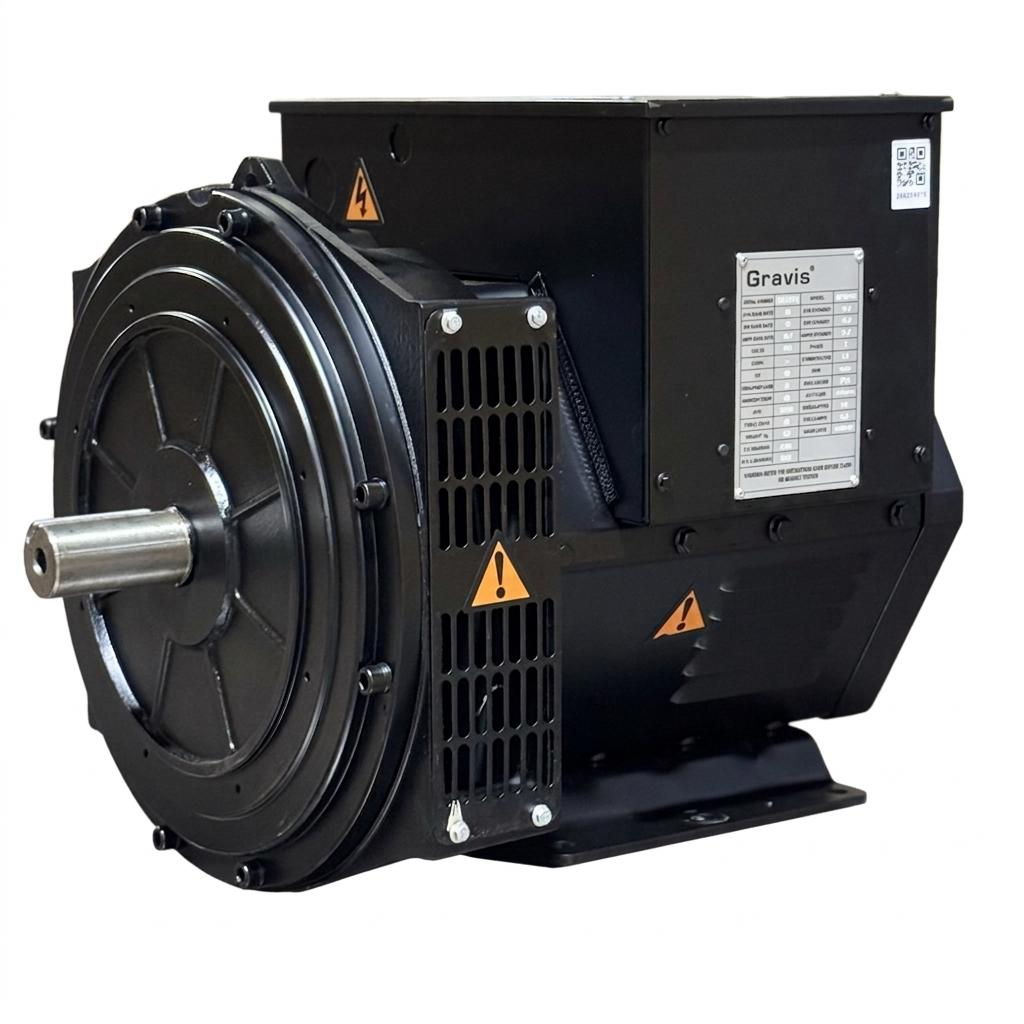

MODEL - GVK164E2SD
Top Rated
Category: ALTERNATOR ( SERIES - B )
Technical Details
| RATED POWER | 15 KVA |
| RATED VOLTAGE | 230 V |
| RATED CURRENT | 65.2 A |
| SPEED | 1500 RPM |
| PHASE | 1 |
| FREQUENCY | 50 HZ |
| POWER FACTOR | 1.0 PF |
| FRAME SIZE | 184 |
| INSULATION CLASS | H |
| AVR | SX460 |
| FIELD VOLTS | 45 |
| ENCLOSURE | IP21 |
| AMBIENT TEMP. | 40 |
| ALTITUDE | <1000M |
| REGULATION | 1% |
| FIELD AMPS | 2.5 A |
| D.E.BEARING | 6309 |
| N.D.E.BEARING | 6306 |
- GRAVIS BRAND
- 100% COPPER WINDING
- AVR
₹75,0001 Year Warranty
Description
➡️ BEARING - DOUBLE BEARING ➡️ PACKING DIMENSIONS (LXBXH) WOODEN BOX - 50×49×55 CM ➡️ WOODEN BOX WEIGHT - 110 KG
Specifications
| BEARING | DOUBLE BEARING |
| PHASE | 1 PHASE |
